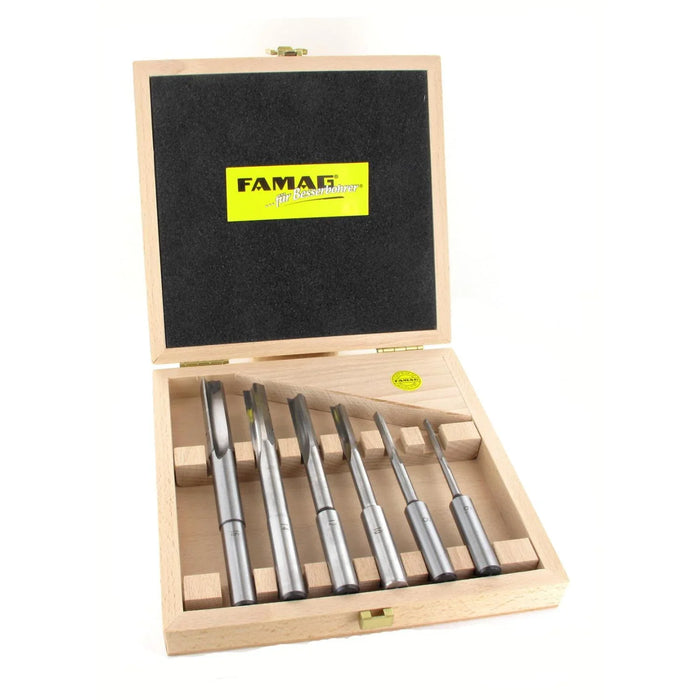

The FAMAG 1601 Slot Mortise Bit RH is designed for clean, efficient slot milling in softwoods using slot-drilling machines. Featuring two straight main cutting edges with chip-breaking flutes and a stepped cylindrical shank, it delivers precise perforation even in veneered or thin-walled panels. 6-piece set in wooden case.

📏 Contents

• F1601106 – Ø 6 mm, OAL 120 mm, SpL 35 mm

• F1601108 – Ø 8 mm, OAL 130 mm, SpL 40 mm

• F1601110 – Ø 10 mm, OAL 140 mm, SpL 45 mm

• F1601112 – Ø 12 mm, OAL 150 mm, SpL 50 mm

• F1601114 – Ø 14 mm, OAL 160 mm, SpL 55 mm

• F1601116 – Ø 16 mm, OAL 170 mm, SpL 60 mm

📐 Geometry & Design

• Cutting Edges: Two straight, fully ground lips for burr-free slots

• Flutes: Chip-breaking flute geometry to prevent clogging and ensure smooth evacuation

• Head Piercing: Special head shape allows for plunge cutting without pre-drilling f

⚙️ Shank

• Ø 13 mm Stepped Cylinder for lighter-duty applications

🔧 Applications

• Softwood Slotting: Ideal for furniture, cabinetry, and frame construction

• Panel Milling: Works on veneered panels and coated boards (limited use on hardwoods)

• Plunge Cuts: Special head geometry allows direct entry without pre-boring
