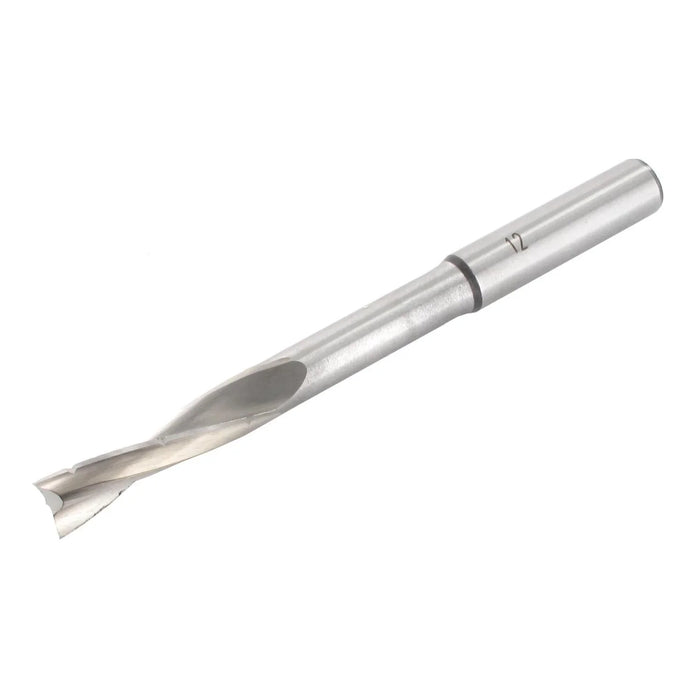

The FAMAG 1607 spiral slot milling cutter is engineered for efficient slotting in softwood—and selectively in European hardwood—using slot-drilling machines. Its twisted flute geometry delivers high feed rates and exceptional chip evacuation for smooth, burr-free cuts.

🔄 Spiral Flute Design

• Two fully ground, helical cutting edges

• Enhanced chip removal reduces clogging

• Smooth, chatter-free operation

⚙️ Shank Options

• Stepped cylindrical shank Ø 13 mm

⚙️ Tool Material & Quality

• Made from premium alloyed tool steel

• Profi-class grinding and finish

• Durable performance in daily production

📝 Usage & Speed Recommendations

• Recommended speeds: 2 500–5 000 rpm

• Consult speed-diagram for optimal RPM

📦 Available Sizes & Part Numbers

Shank Ø 13 mm series (F16071xx):

• F1607106 – Ø 6 mm, OAL 120 mm, L 40 mm

• F1607108 – Ø 8 mm, OAL 130 mm, L 40 mm

• F1607110 – Ø 10 mm, OAL 140 mm, L 40 mm

• F1607112 – Ø 12 mm, OAL 150 mm, L 40 mm

• F1607114 – Ø 14 mm, OAL 160 mm, L 40 mm

• F1607116 – Ø 16 mm, OAL 170 mm, L 40 mm

🔧 Applications & Benefits

• Ideal for furniture and cabinet slotting

• Suitable for softwoods and light-duty hardwood tasks

• Superior surface finish—minimal sanding required

• Long tool life thanks to robust steel construction
