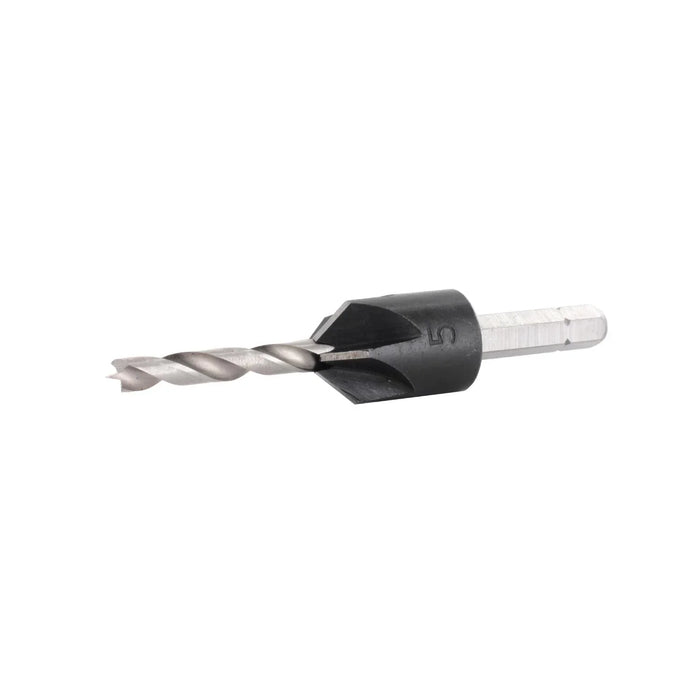

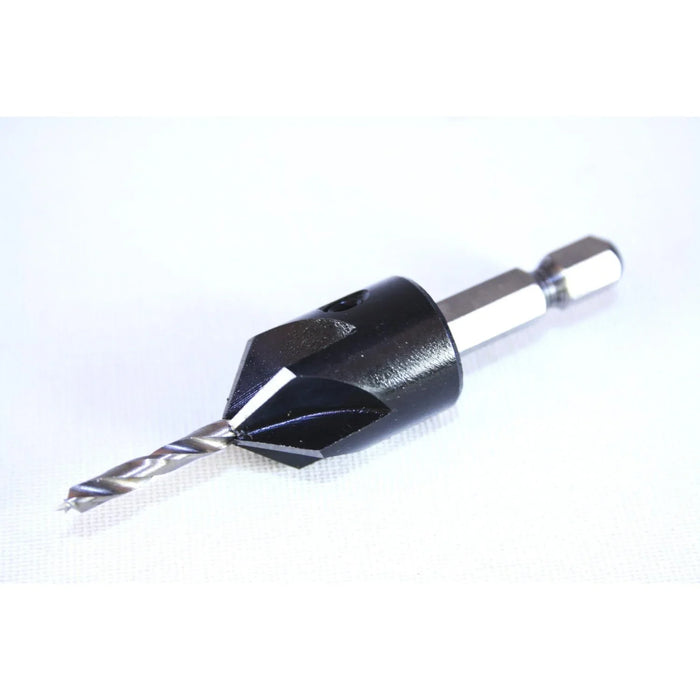

FAMAG 3572 DRILL-COUNTERSINK SET WITH HSS DRILLS
The FAMAG 3572 HSS drill bit and countersink set combines precise drilling and countersinking in softwoods in a single operation. Designed for quick bit-holder changes, this set streamlines woodworking tasks by integrating a fully ground brad point drill bit with a 90° countersink in one tool.
🔩 Key Features
-
Brad-point HSS drill bit with two main cutting edges and two taper taps
-
Hexagonal shank (1/4″; C 6.3) for secure, fast-change bit-holder mounting
-
Integrated 90° countersink (alloyed tool steel, product line F2100)
-
Optimized for softwood drilling and countersinking in one pass
-
Tool Material: HSS for drill bit; alloyed tool steel for countersink
-
Recommended Speed: 1 500 – 2 200 rpm (approx. 1 800 rpm in softwood)
📐 Technical Specifications
| Drill Ø (IØ) | Shank | Overall Length (GL) | Cutting Length (NL) |
|---|---|---|---|
| 3 mm | C 6.3 | 75 mm | 25 mm |
| 4 mm | C 6.3 | 75 mm | 25 mm |
| 5 mm | C 6.3 | 86 mm | 36 mm |
| 6 mm | C 6.3 | 93 mm | 43 mm |
| 8 mm | C 6.3 | 117 mm | 67 mm |
| 10 mm | C 6.3 | 133 mm | 83 mm |
🎯 Benefits
- Efficiency: Combine pre-drilling and countersinking to save time
- Versatility: Ideal for cabinetry, furniture making, and general softwood applications
- Precision: Depth-stop collar ensures uniform countersink depth every time
- Durability: High-speed steel and alloyed countersink resist wear during repetitive use
For hardwoods, switch to FAMAG’s brad point bits (product line F1594, HSS-G) and Vario countersinks (product line F2202).
